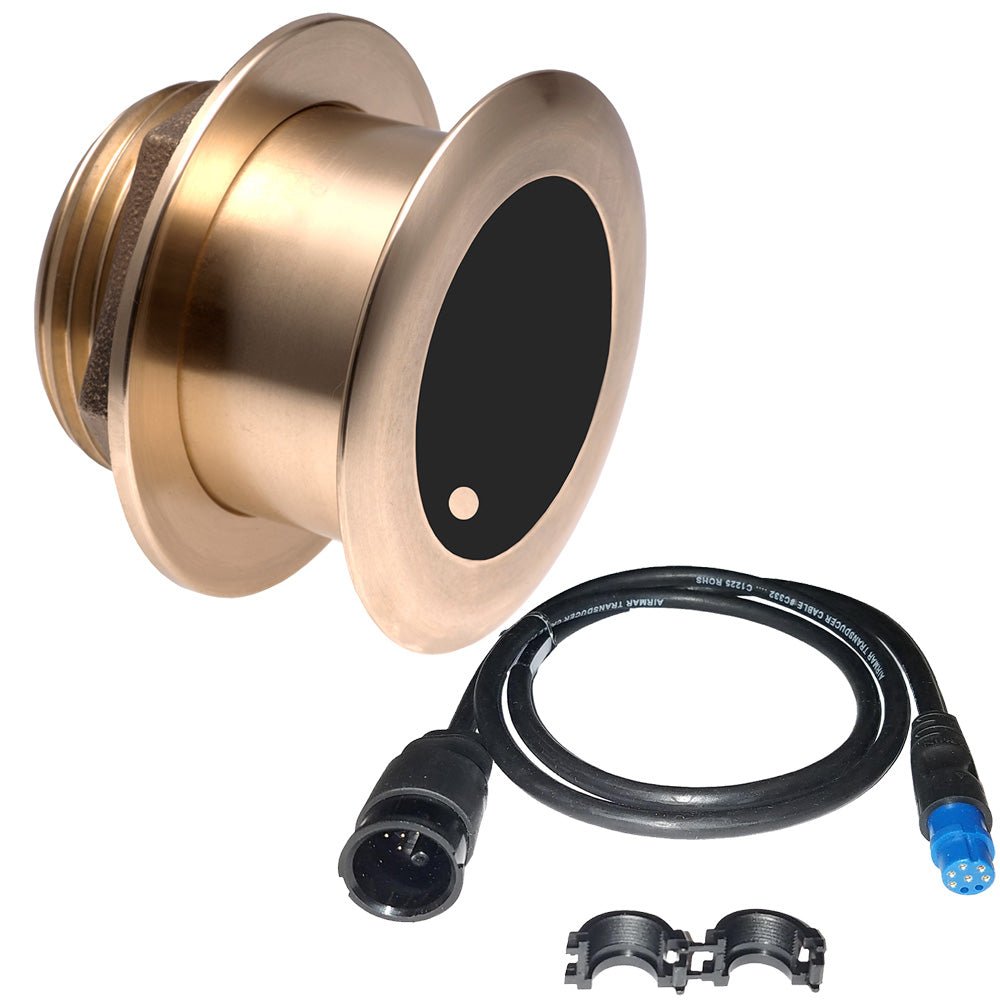

Airmar B175M Bronze 0 Degree Thru-Hull 1kW f/Garmin w/8-Pin Connector [B175C-0-M-8G]

B175M Bronze 0 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorThe B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500′) and gives ultra-clear target resolution.Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull’s deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features:Garmin 8-Pin Mix & Match Cable for Chirp Transducers
Depth and fast-response water-temperature sensing
1 kW of power
Medium frequency: 85 to 135 kHz
16° to 11° beamwidth
Maximum depth of 457 m (1500′)
50 kHz of total bandwidth from one transducer
Low-profile, thru-hull housing provides good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Bronze housing for use in a fiberglass or wood hull
Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount
Patented Xducer ID® technology
Specifications:
Power Rating: 1 kW
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Hole Size: Fiberglass or wood hull 95 mm (3-3/4″), Metal hull 105 mm (4-1/8″)
Usable Shaft Length: 55 mm (2.18″)
Mounting Style: Tilted Element Thru-Hull
Acoustic Window: Urethane
Common Use: Fishing
Max Deadrise: Up to 24°
Max Depth: 457 m (1500′)
Medium Frequency: 85-135 kHz
Medium Frequency Beamwidth: 16°-11°
Retractable housing: No
Single or Dual Frequency: CHIRP-Ready Single-Band
Tilted Element: Yes
Weight: 2.7 kg (6 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
