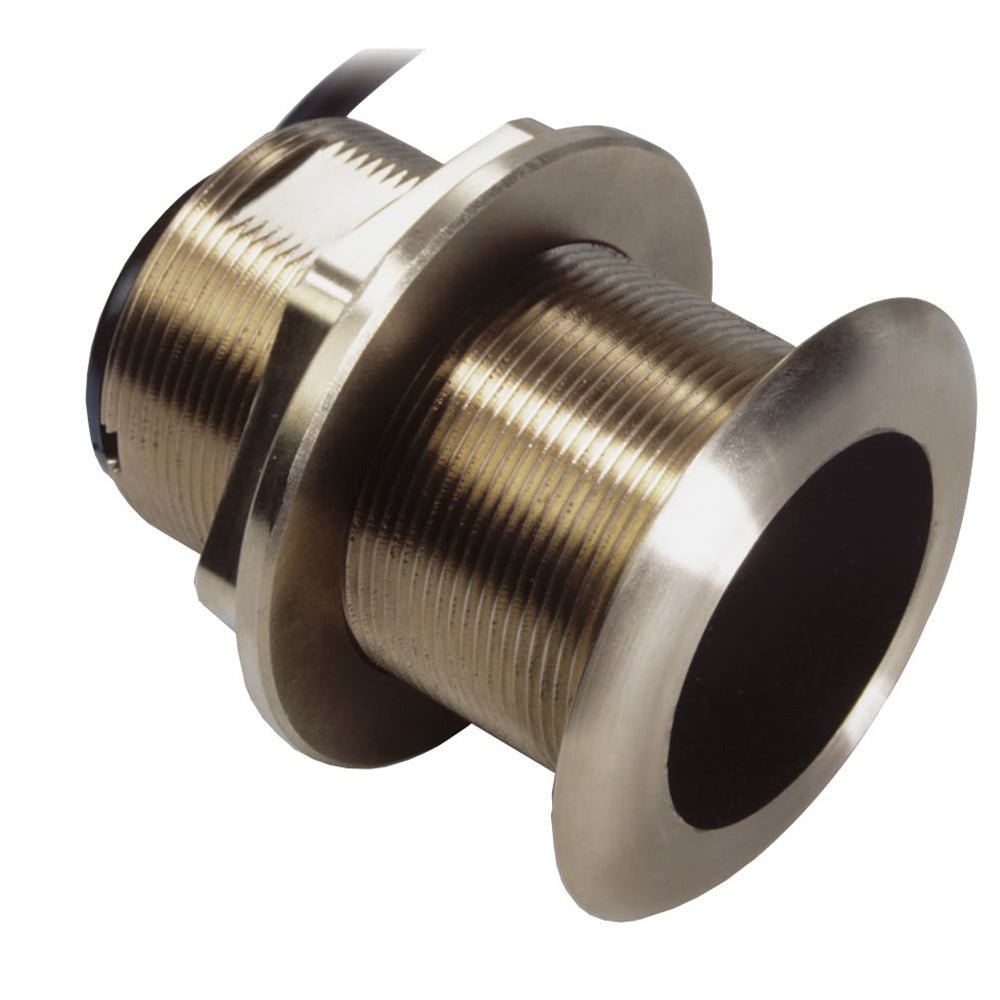

Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug – 7-Pin – 20 [B60-20-HB]

$324.99

Category:

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug – 7-Pin – 20ºThe bronze B60-20º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull.Features:
Engineered for center-console and trailered boats
Low-profile protrusion below the hull
No affect on your boats running performance
Arrow on cap points toward keel when installed
Built-in temperature sensor
Boat Size: Up to 8 m (25′)
Bronze transducer housing
Specifications:
Weight: 1.4 kg (3 lb)
Hull Deadrise: Up to 24°
Acoustic Window: Urethane
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Temperature: Yes
Mounting Style: Thru-Hull
Pins: 7
Box Dimensions: 1″H x 5″W x 8″L WT: 4.9 lbs
Quick Guide (pdf)Owner’s Manual (pdf)Brochure (pdf)
