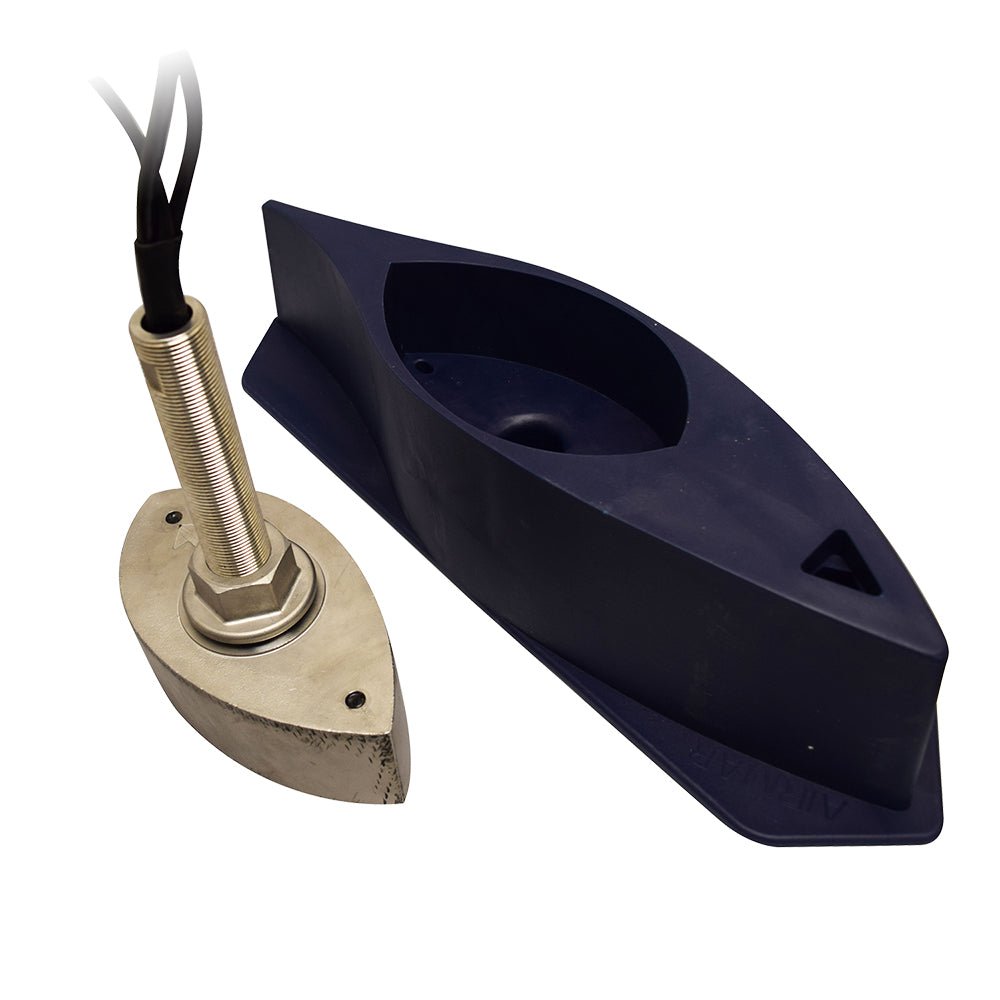

Furuno 165T-50/200-SS260 DFF3D Thru-Hull Combo Transducer [165T-50/200-SS260]

165T-50/200-SS260 DFF3D Thru-Hull Combo TransducerStainless Steel Combination Thru-HullThe 165T-50/200-SS260 includes the DFF3D elements along with 50/200 kHz elements and temperature and motion sensors. It can be connected to the DFF3D Multi-Beam Sonar along with one sounder. These transducers save money and space compared to purchasing and installing two separate transducers.Features:
Stainless Steel Thru Hull with high speed fairing block
Can be flush mounted in keel without using fairing block
DFF3D operating frequency: 165 kHz
Built-in motion sensor
Built in temp sensor
1kW, 50/200 kHz, 20/6 ° beam angles for sounder elements – the same elements as an Airmar B164 transducer
12M Cables with 10-pin Connector for sounder, 7-pin connector and a pigtail cable for the DFF3D
Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Mounting Style: Thru-Hull
Cable Length (Feet): 12m
Box Dimensions: 7″H x 18″W x 25″L WT: 25.2 lbs
UPC: 611679375117
Brochure (pdf)
