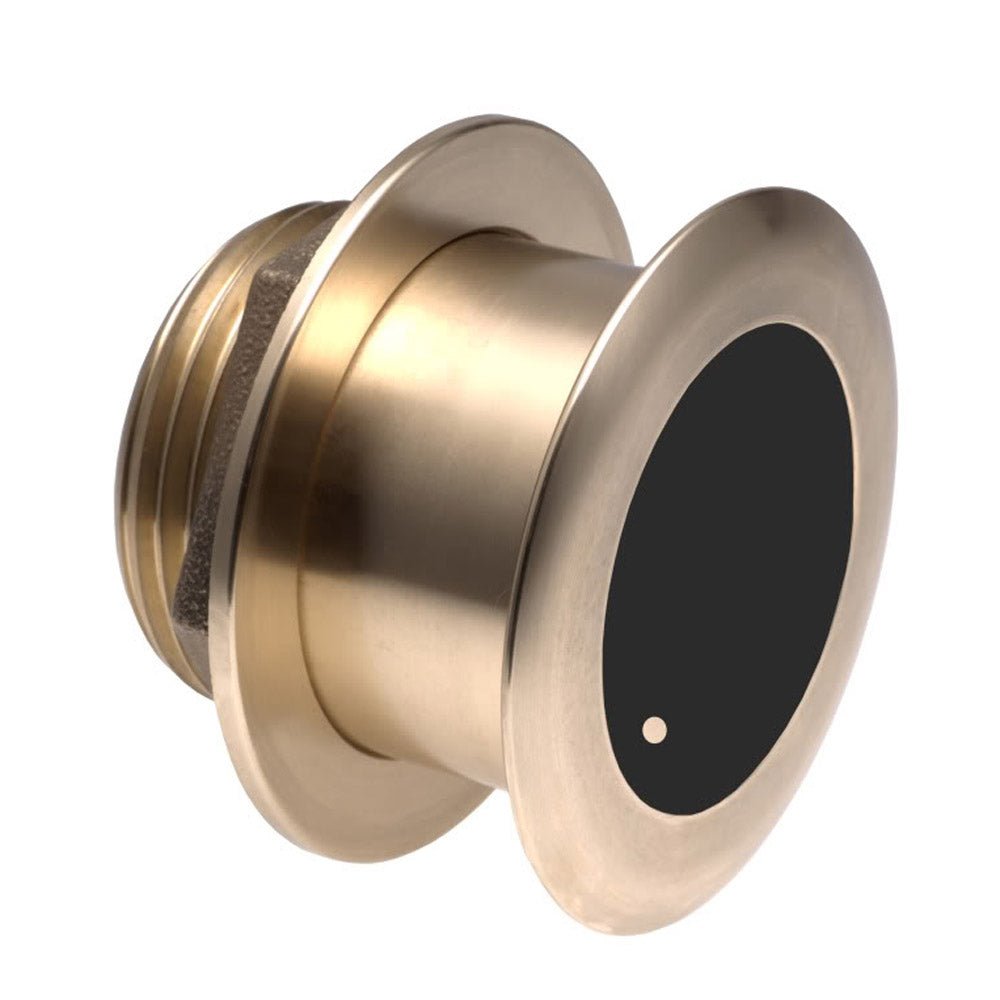

Garmin B175L Bronze 20 Degree Thru-Hull Transducer – 1kW, 8-Pin [010-11938-22]

Airmar B175Lw/20° Tilt1kWFlush-mounted bronze housing protrudes less than 1/4″ outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.Max Depth – 3,000’Suppoarted Deadrise/Transom Angles – 16-24° DeadriseWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Temperature: Yes
Speed Included: No
Mounting Style: Thru-Hull
Imaging: Standard
Chirp: Low
Cable Length (Feet): 39′
Pins: 8
Box Dimensions: 8″H x 10″W x 12″L WT: 12 lbs
UPC: 753759995737
Owner’s Manual (pdf)Brochure (pdf)
