Garmin ECHOMAP UHD2 7″ sv Ice Fishing Bundle w/ECHOMAP UHD2 73sv GT10HN-IF Transducer [010-02684-35]

ECHOMAP™ UHD2 7″ sv Ice Fishing Bundle with ECHOMAP™ UHD2 73sv & GT10HN-IF TransducerDesigned for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.Features:
Built with a bright 7” touchscreen display and keyed assist
Included transducer so you see what’s below
Built-in flasher
Garmin Navionics+™ maps with 23,000+ lakes
Rugged, portable carrying case
ECHOMAP UHD2 ChartplotterThe 7” ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat (additional accessory purchase required).Ice Fishing Transducer This bundle includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 degrees), and it provides crisp, clear fish arches with excellent target separation.Garmin Navionics+ MapsYou get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.Custom Combos You can create custom pages that combine sonar, flashers, and maps on your display.Supports Scanning Sonar ECHOMAP UHD2 73sv also supports ClearVü™ and SideVü™ scanning sonars for nearly photographic images of what’s below the boat (transducer sold separately).Carrying CaseWhere you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.In the Box:

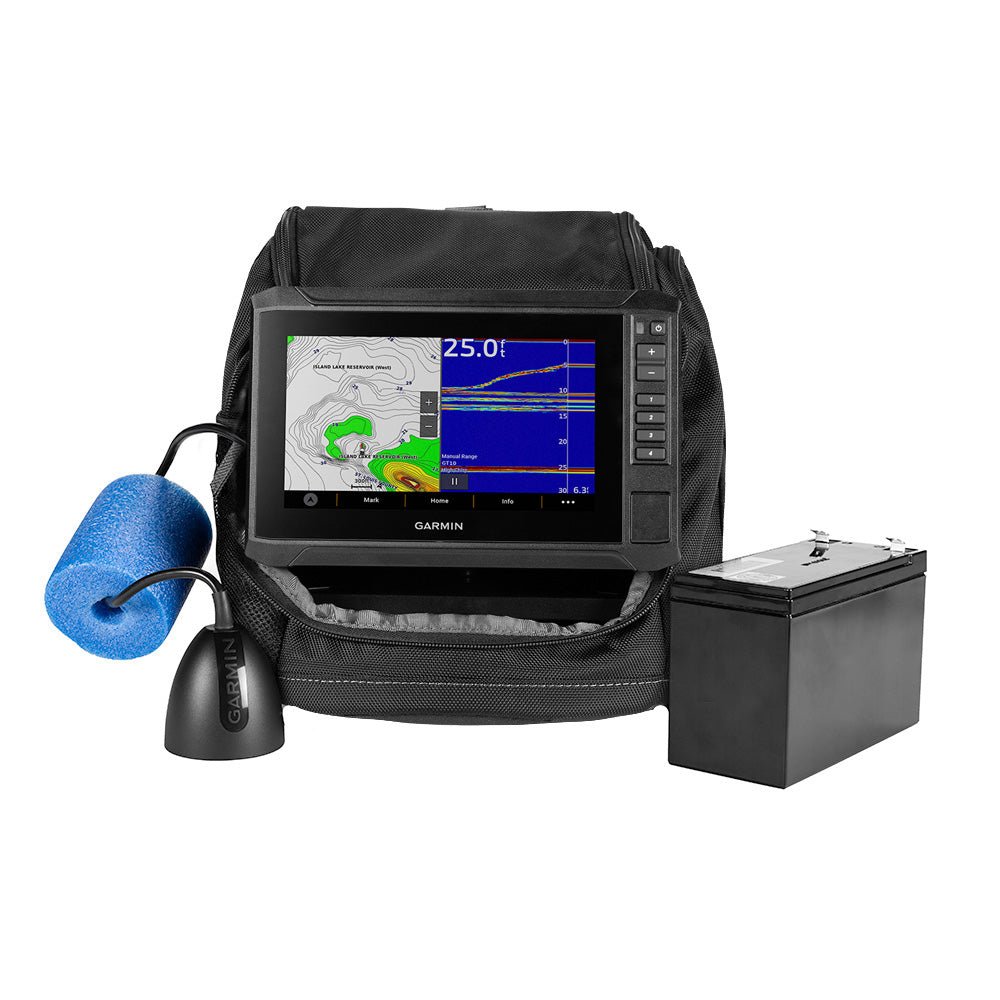

ECHOMAP™ UHD2 73sv chartplotter
GT10HN-IF ice fishing transducer
Tilt/swivel mount
Portable bag
Base/handle
Foam float
Power cable
Rechargeable battery
Battery charger
Documentation
General Specifications:
Dimensions: 10.5 x 9.5 x 10.5 in. / 26.7 x 22.9 x 26.7 cm
Touchscreen: Yes
Display Size: 6.1 x 3.4, 7.0″ in. / 15.5 x 8.7, 17.8 cm
Display Resolution: 800 x 480 pixels
Display Type: WVGA, IPS
Weight: 11 lbs / 5.0 kg
Waterproof: IPX7
Maps & Memory:
Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
Waypoints: 5000
Track Points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100
Ice Fishing Details:
Battery Type, Size: SLA, 7Ah
Bag Size: Small
Included Transducer: GT10HN-IF
Transducer Holding Feature: Foam float
Sensors:
Has Built-in Receiver: Yes
Receiver: 10 Hz
NMEA 2000 Compatible: Yes
GPS: Yes
Glonass: Yes
Galileo: Yes
Beidou: Yes
Supports Waas: Yes
Supports Multi-Band, Multi-Constellation GPS: Yes
Built-in Maps:
Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal: Yes (see Additional)
Garmin Navionics+ (Inland): Yes (see Additional)
Optional Map Support:
Garmin Navionics+: Yes
Garmin Navionics+ VIision+™: Yes
TOPO: Yes
Standrad Mapping: Yes
Garmin Quickdraw Tours: Yes
Chartplotter Features: ActiveCaptain® Compatable: YesElectrical Features:Power Input: 9 to 18 VdcSonar Features & Specifications:
Displays Sonar: Yes
Power Output: 500 W
Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü™: Built-in 260/455/800/1000/1200 kHz
SideVü™: Built-in 260/455/800/1000/1200 kHz
Panoptix™ Sonar: Yes
Livescope; Yes
Connections:
NMEA 2000® Ports: Yes
Garmin Marine Network Ports: 1
12-Pin Transducer Ports: 1
Bluetooth® Pairing: Yes
Ant+ (Connectivity): Yes
Garmin Wi-Fi Network (Local Connection): Yes
Additional:
Garmin Navionics+ Inland & Coastal: 75sv Canada
Garmin Navionics + (Inland): 75sv U.S. Lakes
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
Included Transducer: GT10HN-IF
Screen Size: 7″
Touchscreen: Yes
Transducer Included: Yes
Box Dimensions: 9″H x 12″W x 17″L WT: 14.2 lbs
UPC: 753759322724
