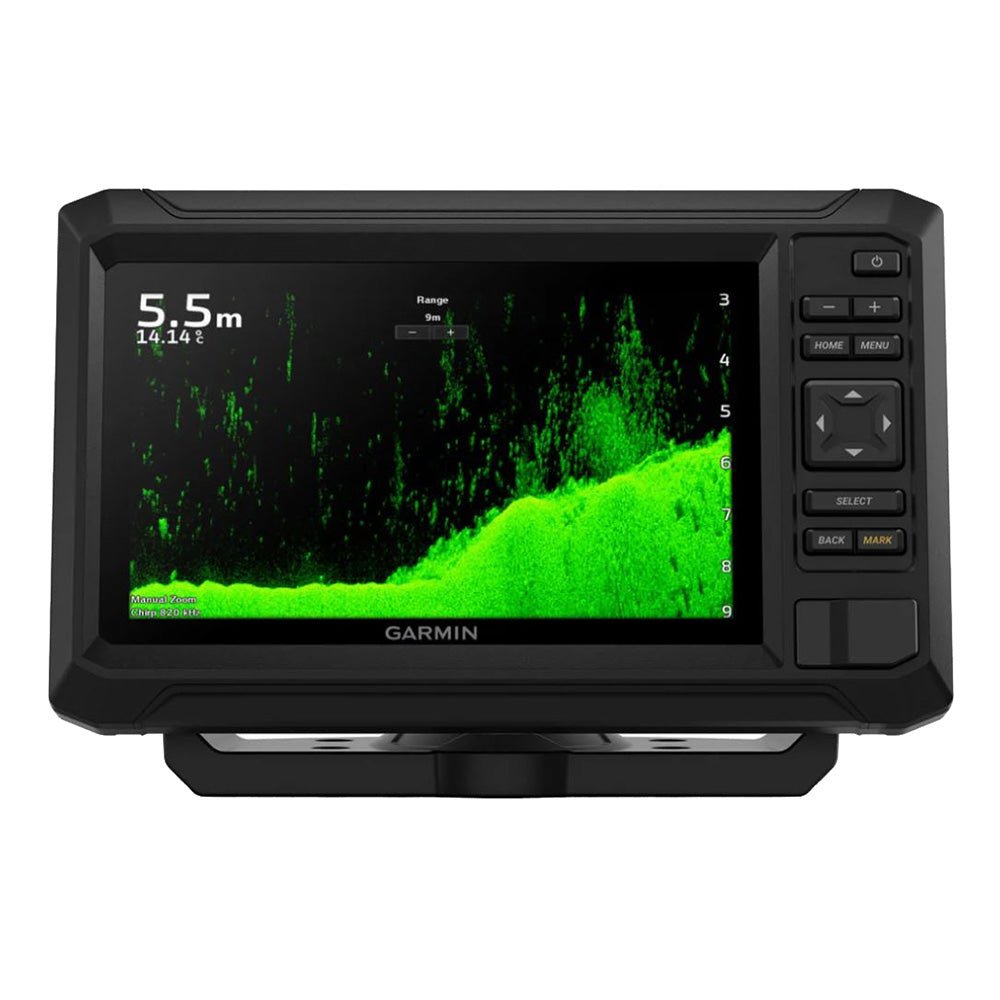

Garmin ECHOMAP UHD2 72cv w/o Transducer [010-02593-00]

ECHOMAP™ UHD2 72cv without TransducerThey say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.Features:
7” display size
The bright keyed display is made for convenience
Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars
What’s under the water looks even better with high-contrast vivid color palettes
Wi-Fi connectivity2 between compatible chartplotters makes it easy to share info
Enjoy No. 1 in mapping with Garmin’s LakeVü g3 and BlueChart® maps with Navionics® data
Sonar SupportWith crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.Vivid Color PalettesHigh-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bundle the TransducerThe ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.Preloaded ChartsKnow the waters users are in as if they grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.Wireless NetworkingIf users have another compatible ECHOMAP UHD2 chartplotter on the boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.ActiveCaptain® AppBuilt-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data, and more.In the Box:
ECHOMAP™ UHD2 72cv
Power/data cable
Tilt mount
Flush mount
Hardware
Documentation
Specifications:General:
Dimension: 9.1″ x 5.6″ x 2.6″ (23.2 x 14.3 x 6.7 cm)
Weight: 1.5 lbs (0.7 kg)
Waterproof: IPX7
Display Type: WVGA, TN
Display Size: 6.1″ x 3.4″ (15.5 x 8.7 cm)
Display Resolution: 800 x 480 pixels
Mounting Options: Bail or flush
Input: Keyed
Maps & Memory:
Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
Waypoints: 5,000
Track Points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100
Sensors:
GPS: Yes
Galileo: Yes
Has Built-In Receiver: Yes
Receiver: 5 Hz
Supports WAAS: Yes
Built-In Maps:
Built-In Auto Guidance+: Yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal: Yes (see Additional)
Garmin Navionics+ (Coastal): Yes
Garmin Navionics+ (Inland): Yes
Tide Tables: Yes
Optional Map Support:
BlueChart g3: Yes
BlueChart g3 Vision: Yes
LakeVü g3: Yes
LakeVü g3 Ultra: Yes
Garmin Navionics+: Yes
Garmin Navionics Vision+: Yes
TOPO U.S. 100K: Yes
Standard Mapping: Yes
Garmin Quickdraw Contours: Yes
Chartplotter Features:ActiveCaptain® Compatible: YesElectrical Features:
Power Input: 9 to 18 VDC
Typical Current Draw at 12 VDC: 1.0 A
Maximum Current Draw at 12 VDC: 1.5 A
Maximum Power Usage at 10 VDC: 18 W
Sonar Features:
Displays Sonar: Yes
Power Output: 500 W
Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü: Built-in 260/455/800/1000/1200 kHz
Connections:
4-Pin Transducer Ports: 1
Garmin Wi-Fi Network (Local Connection): Yes
1Transducer required2Requires the ActiveCaptain app on a compatible smartphone paired to the ECHOMAP UHD2 5” and 7” chartplotters Specifications:
Included Transducer: GT20-TM transducer
Screen Size: 7″
Touchscreen: No
Transducer Included: Yes
Box Dimensions: 7″H x 9″W x 12″L WT: 3.5 lbs
UPC: 753759284640
