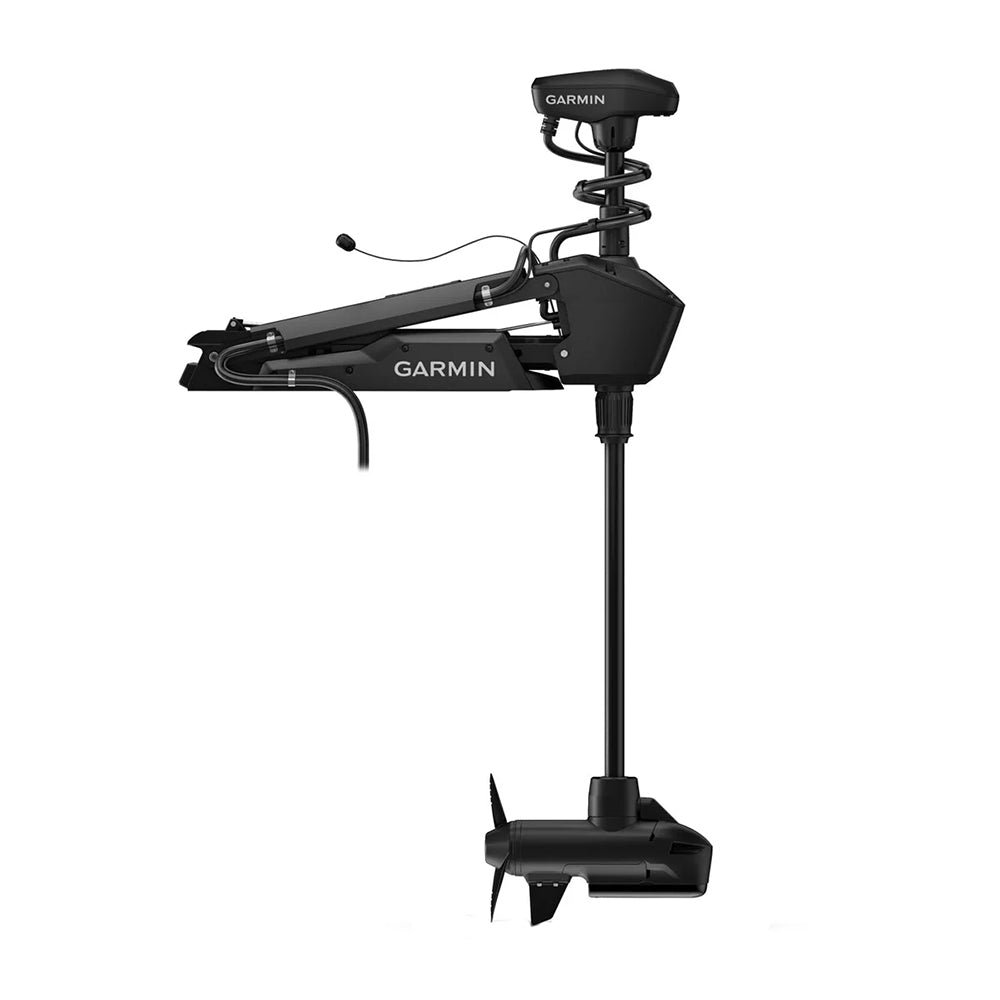

Garmin Force Pro 50″ Trolling Motor w/Built-In GT56UHD-TR Transducer [010-03011-00]

Force® Pro 50″ Trolling Motor with Built-In GT56UHD-TR TransducerFISH WITH FORCEMove fast, move quiet with the Force Pro trolling motor — engineered with a powerful motor and our most precise positioning technology1.
Improved anchor lock via superior accuracy multi-band GPS
Legendary power and performance; 100 lbs of thrust1
Wireless controls integrate with Garmin chartplotters
Dual gas springs and pull cable for easy deployment and stowing
Brilliant high-definition scanning sonar
High PoweredThe brushless motor on Force Pro provides legendary power and performance, as well as premium efficiency, with 100 lbs of thrust1.Stay PutThe anchor lock feature provides our most precise boat positioning technology with new multi-band GPS, plus reverse prop spin and calm-water cable unwrap help reduce motor activity.Built-In SonarThis trolling motor includes the improved all-in-one GT56UHD-TR transducer, so you can see everything around your boat with brilliant high-definition scanning sonar and extremely low levels of sonar noise.Wireless ControlMake speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control.Lighted IndicatorFish in low light, and always know what direction you’re headed with the lighted indicator on the trolling motor shaft cap.Perfect for Bass BoatsDeploy and stow the motor with ease, thanks to dual gas springs and a durable pull cable. The 50-inch and 57-inch shaft lengths accommodate different boat sizes and deck configurations. The included weedless and high-efficiency propellers can be easily swapped as needed.Floating RemoteUse the included remote to help you navigate from anywhere in the boat with our simple point-and-go technology.Smartwatch IntegrationConnect your compatible Garmin smartwatch to control steering, anchor lock, and more from your wrist.Wireless IntegrationConnect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.Whisper QuietDon’t spook the fish; the motor is extremely quiet above and below the water.Designed to EndureThe Force Pro trolling motor is built with advanced corrosion and saltwater protection for harsh marine environments.In The Box:
Force® Pro Trolling Motor
High-efficiency propeller
Weedless propeller
Foot pedal
Remote
Stabilizer
Assembly and mounting hardware
Documentation
General Specifications:
Color: Black
For use in: freshwater, brackish water, and saltwater
Mount Style: scissor-style mount
Max thrust: 100 lbs per ISO 13342 using a high-efficiency propeller at 36 V,  80 lbs per ISO 13342 using a high-efficiency propeller at 24 V
Voltage: 24 V or 36 V
Electric steering: Yes
Lift-assist: dual gas springs
Built-in heading sensor: Yes
Warranty: 3-year, limited lifetime on shaft
Water rating: IPX7
Mounting location: Bow
Wireless remote: Yes (Included)
Foot pedal compatible: Yes (included)
Battery Indicator: Yes
Variable speed control: Yes (20 steps)
Lighted direction indicator: Yes
Deck stabilizer: Yes (included)
Quatix remote control supported: Yes
Manual reverse control: yes
Sonar Features:
Frequencies Supported: Traditional: High-wide CHIRP (150-240 kHz); ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
Transmit Power: Traditional: 350 W; ClearVü/SideVü: 500 W
Maximum Depth: CHIRP sonar: 800′ freshwater; ClearVü: 400′; SideVü: 500′
Depth/Speed/Temperature: depth and temperature
Number of Pins: 12-pin (orange connector)
Autopilot Features:
Route Following: Yes
Anchor Lock: Yes
Smart Anchor Lock Features: Yes
Anchor Lock Jog: Yes
Heading Hold: Yes
Cruise Control: Yes
Gesture Features: Yes(manual+, heading hold+, jog+)
Foot Pedal Features:
Dimensions: 12″ L x 9″ W x 4 1/2″ H
Wireless Communication: Yes
Power Installation: 12 V/24 V/36 V wired or battery-powered (2 AA)
AA Battery Life: 1 full season
Water Rating: IPX7
Adjustable Pedal Resistance: Yes
Remote Features:
Display Size: 1.2″ (30.2 mm) diameter
Display Resolution: 240 x 240 pixels
Display Type: color, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter User-Programmable Keys: Yes
Autopilot Feature Control: Yes
Water Rating: IPX7
Battery Life: typical use with backlight at low, 43 weeks
Floats: Yes
1In compliance with ISO standard 13342WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
Autopilot: Yes
Built-In Transducer: Yes
Control Type: Foot Control
Included Propeller: 010-12832-01
Mounting Style: Bow
Series: Force
Shaft Length (Inches): 50″
Thrust (Pounds): 80/100 lbs
Voltage – Input Range (Volts): 24v or 36v
Box Dimensions: 12″H x 19″W x 66″L WT: 100 lbs
UPC: 753759341930
