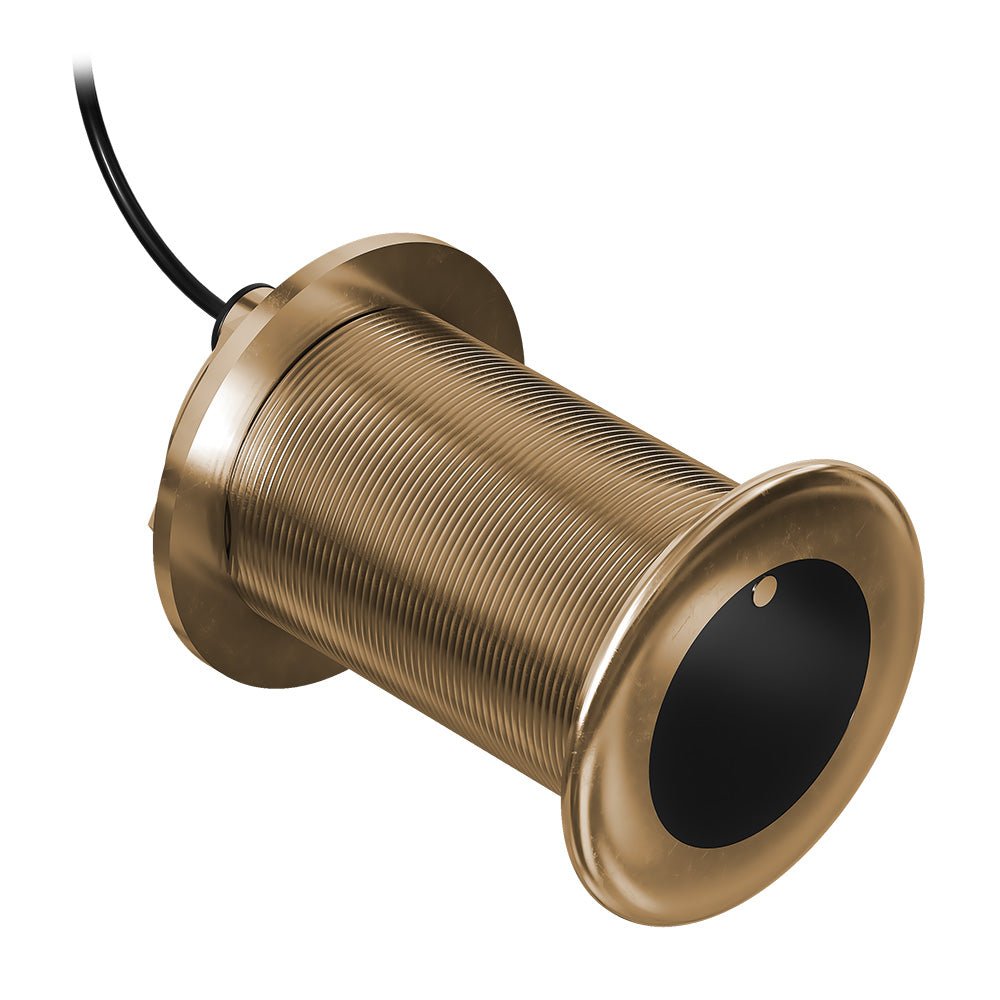

Garmin GT12M Bronze Thru-Hull – 350W – 12 Degree [010-02867-01]

GT12M Bronze Thru-Hull – 350W – 12 DegreeDesigned for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 350-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on your display.Midband Chirp Traditional SonarThis 8-pin, 350-watt bronze thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 800’ in saltwater and 1,200’ in freshwater.Broad Frequency RangeUse the perfect frequency for the waters you’re fishing. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.Optimum Ping SensitivityOffering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on your compatible chartplotter display.Thru-Hull InstallationA durable bronze housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.Auto-ID TechnologyEnjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to automatically configure itself to the transducer being used.Fits Various Hull TypesConfigurable for a wide variety of boat hull materials, including fiberglass, composite, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20° without a fairing block.In the Box:
GT12M-THF transducer
Jam nut
Washer
Documentation
Specifications:
Transducer Frequency: Medium band CHIRP (85-165 kHz)
Transducer Power: 350 W
Transducer Beamwidth: 24° -16°
Transducer Maximum Depth: 800 ft saltwater / 1200 ft freshwater
Transducer Cable Length: 50 ft
Transducer Depth/Speed/Temperature: Depth, temperature
Transducer Number of Pins: 8-pin
Housing Material: Bronze
Transducer Supported Deadrise/Transom Angles: 12° supports hull deadrise angles from 8° to 15°
Specifications:
Cable Length (Feet): 50
Chirp: Medium
Mounting Style: Thru-Hull
Pins: 8
Speed Included: No
Temperature: Yes
Box Dimensions: 8″H x 8″W x 12″L WT: 7.4 lbs
UPC: 753759319908
