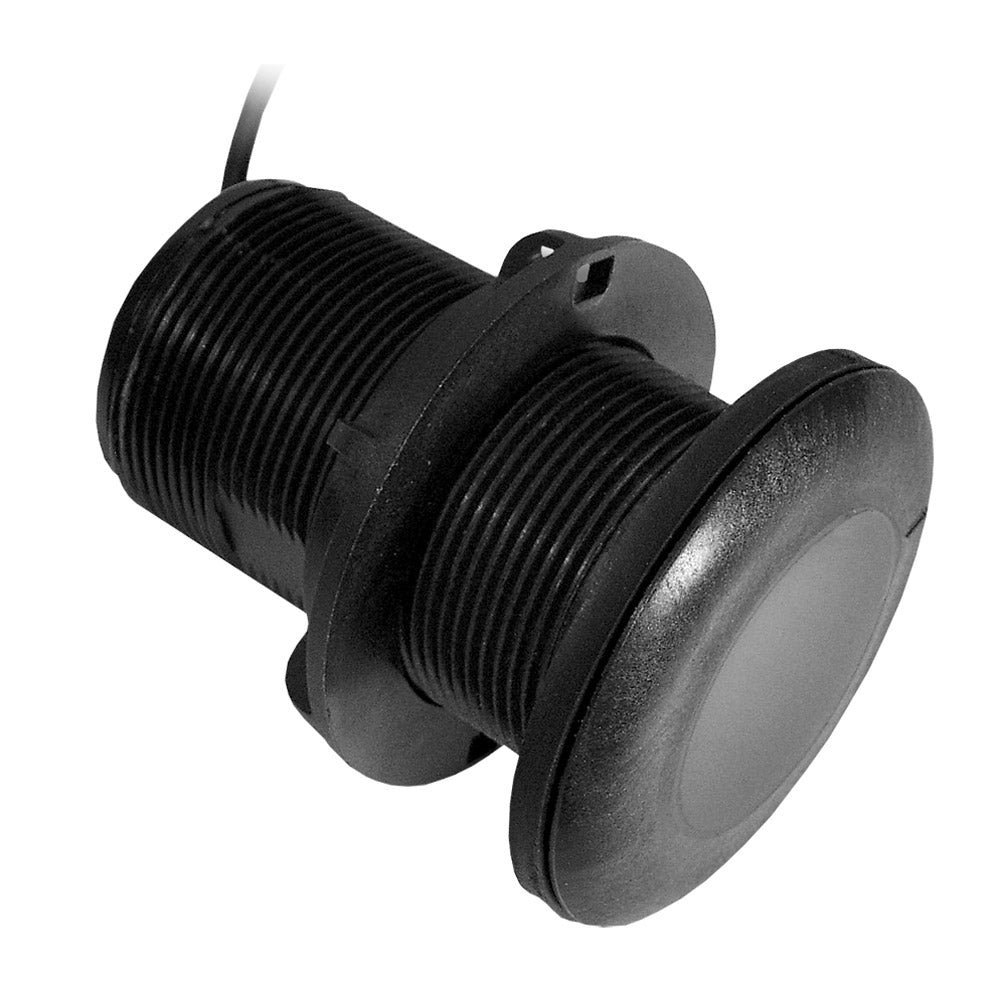

Garmin P19 Nylon 20 Degree Tilt Transducer – 8-Pin [010-10218-22]

Tilted Element™ Thru-HullMinimize Your DragThe P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700′). These nearly flush units minimize drag as only 5mm (2/10″) of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.Applications
Cruising powerboats and sailboats
Sailboats
Features
Depth only or Depth and temperature
Fixed 20° tilted versions for 16° to 24° hull deadrise
Right angle cable exit offers low headroom and protection when transducer is stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Housings are ABYC H-27 compliant
Optional temperature sensor
Plastic housing
Boat Size: Up to 9M (30′)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Mounting Style: Thru-Hull
Imaging: Standard
Chirp: No
Cable Length (Feet): 30′
Temperature: Yes
Speed Included: No
Pins: 8
Box Dimensions: 4″H x 6″W x 8″L WT: 2.05 lbs
UPC: 753759971755
Quick Guide (pdf)Owner’s Manual (pdf)Brochure (pdf)
