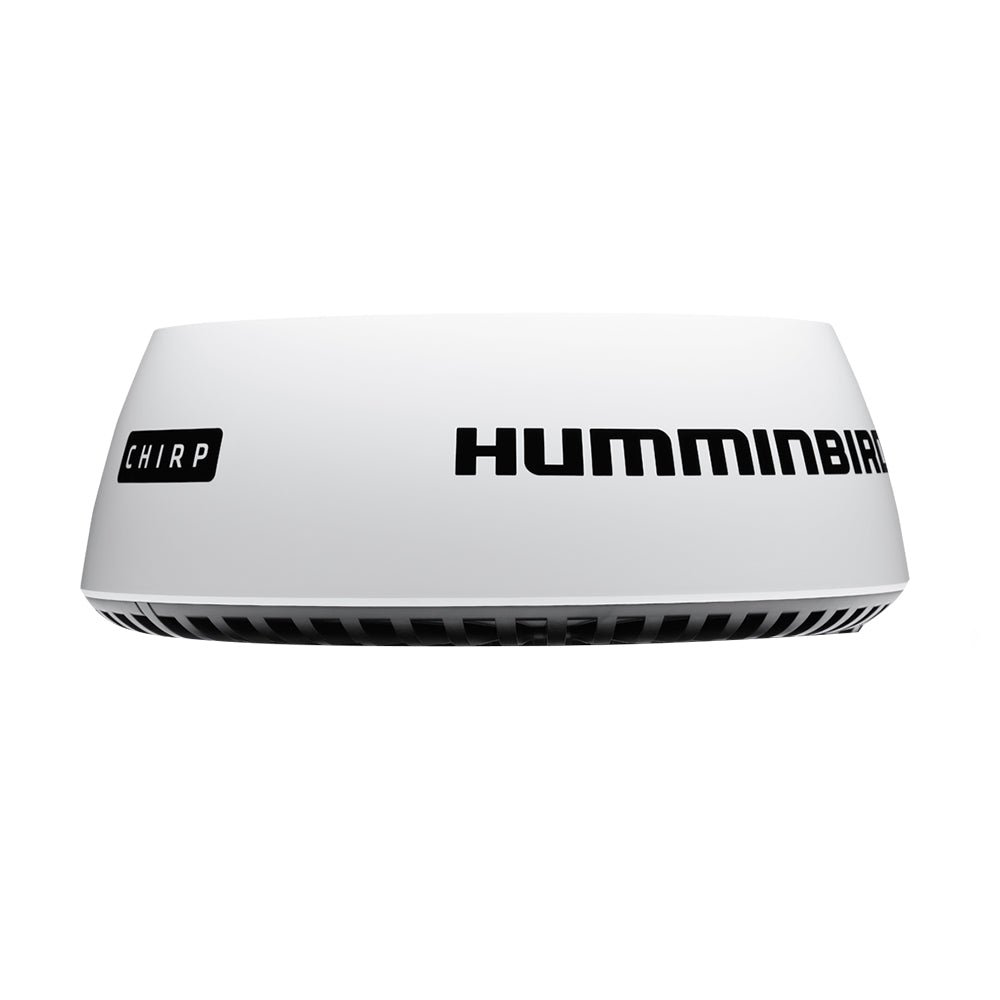

Humminbird HB2124 CHIRP Radar [750013-1]

HB2124 CHIRP RadarCompatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton. Features:
Antenna Dimension – 21″ Enclosed Dome
Antenna Type – Patch Array
Peak Power Output – 20W
Transmit Frequency – 9354 to 9446 MHz
Beam width (nominal) – 4.9° Horizontal and 20° Vertical
Input Voltage – 12 or 24 VDC (Miniumum – 10.8 Volts, Maximum – 31.2 Volts)
Networking – Ethernet
Maximum Range Scale – from 1/16 to 24 nautical miles
Power Consumption – Transmit mode – 17W; Standby Mode – 7W; Sleep Mode – 2W
Duplexer – Circulator
Pulse Widths @ 3 dB – 40 ns to 14.7µs
CHIRP Lengths – 400 ns to 20µs
CHIRP Bandwidth – Up to 32 MHz
IF Bandwidth – 26 MHz
Noise – Less than 4 dB
Polarization – Horizontal
Waterproofing – IPX6
Weight – 12.3 lbs (5.6 kg)
Compatibility Networking HELIX models and all ONIX models
Specifications:
Array Size (Inches): 21″
Box Dimensions: 12″H x 24″W x 24″L WT: 21.2 lbs
UPC: 082324050169
Owner’s Manual (pdf)
