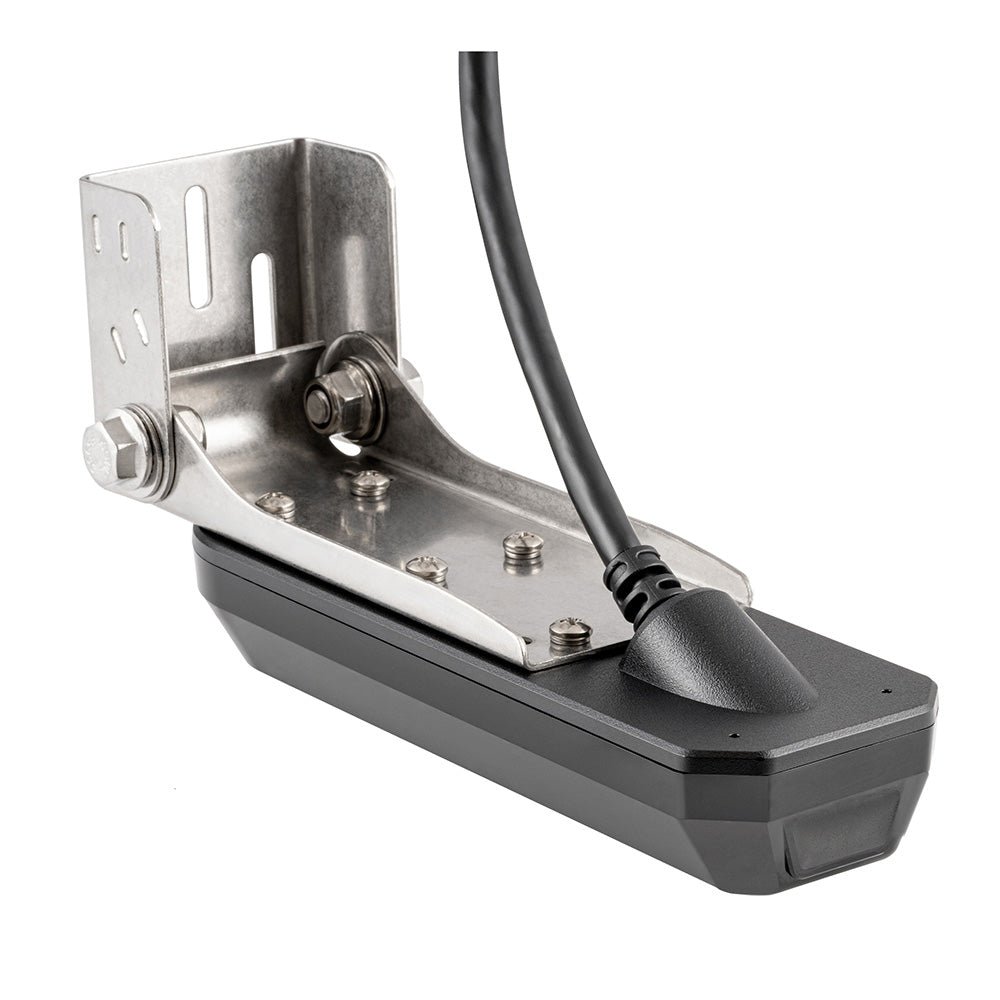

Humminbird XM-14-HW-CMSI-T Compact MEGA Side Imaging+ Transducer [710311-1]

XM-14-HW-CMSI-T Compact MEGA Side Imaging+ TransducerHumminbird Compact MEGA Side Imaging+ transducer is compatible with APEX, XPLORE, and SOLIX G3 models. This transom mount transducer has a built-in temperature sensor, MEGA Side Imaging+, 455kHz and 1.1 MHz; Down Imaging+ frequencies 455kHz and 1.1 MHz, and Dual Spectrum 2D CHIRP with a range of 150- 220kHz.Features:
Compatible with APEX, SOLIX G3, and XPLORE fish finder models
Cable Length: 20 Feet
Compact MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 405-505 kHz – 800ft (244m), MEGA: 1.100-1.200 MHz – 400ft (122m)
Compact MEGA Down Imaging Frequencies – Max Depth: 455 kHz: 420-520 kHz – 400ft (122m) MEGA: 1.125-1.225 MHz – 400ft (122m)
Dual Spectrum CHIRP Frequencies – Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
Screw-On Connector
Built-in temperature sensor
1-Year Limited Warranty
Specifications:
Mount Type: Transom
Sonar Type: MEGA Imaging +, Down Imaging, Dual Spectrum, Side Imaging
Warranty: 1-Year Warranty
