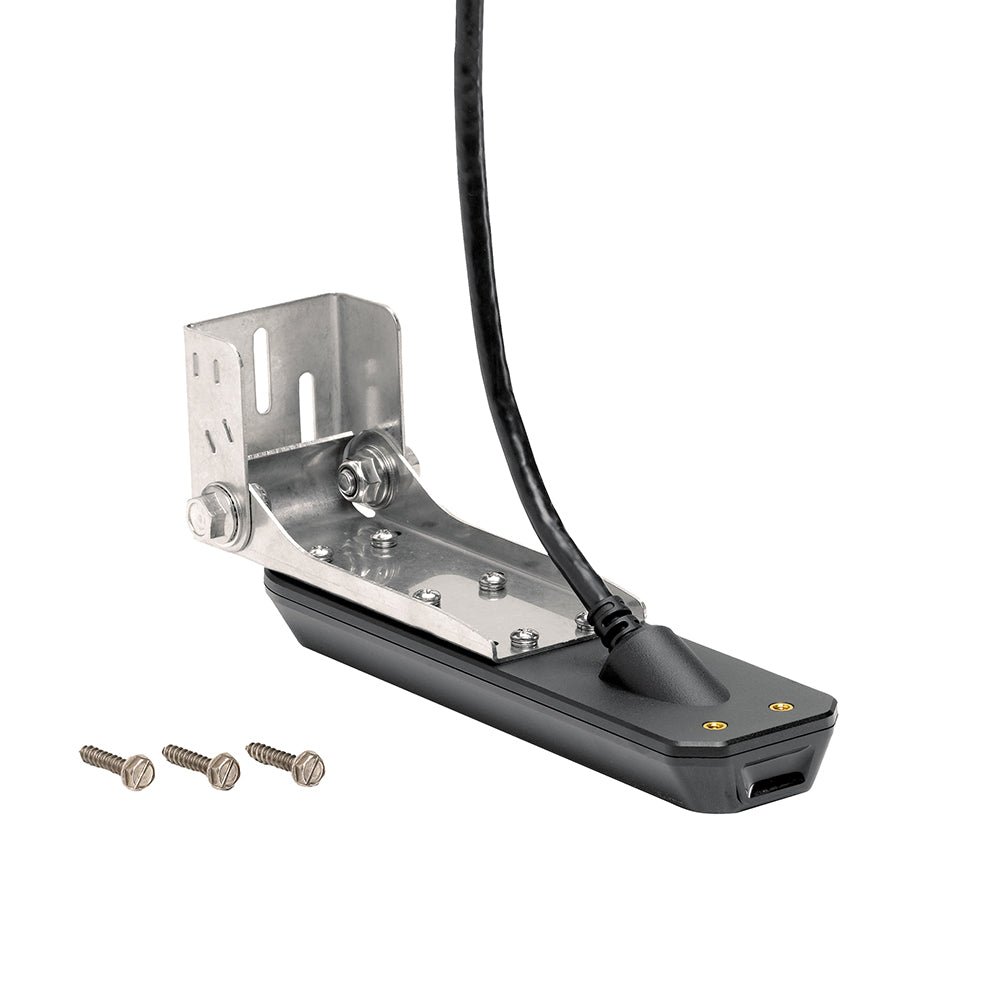

Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer w/Temp f/SOLIX [710292-1]

XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.Features:
This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2.
Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
Dual Spectrum CHIRP Max Depth: 1200ft (365m)
MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 250ft (76m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
Specifications:
Cable Length (Feet): 20′
Temperature: Yes
Speed Included: No
Pins: 14
Mounting Style: Transom
Imagining: Standard/Down/Side
Chirp: High Wide
Box Dimensions: 4″H x 9″W x 15″L WT: 2.9 lbs
UPC: 082324053252
