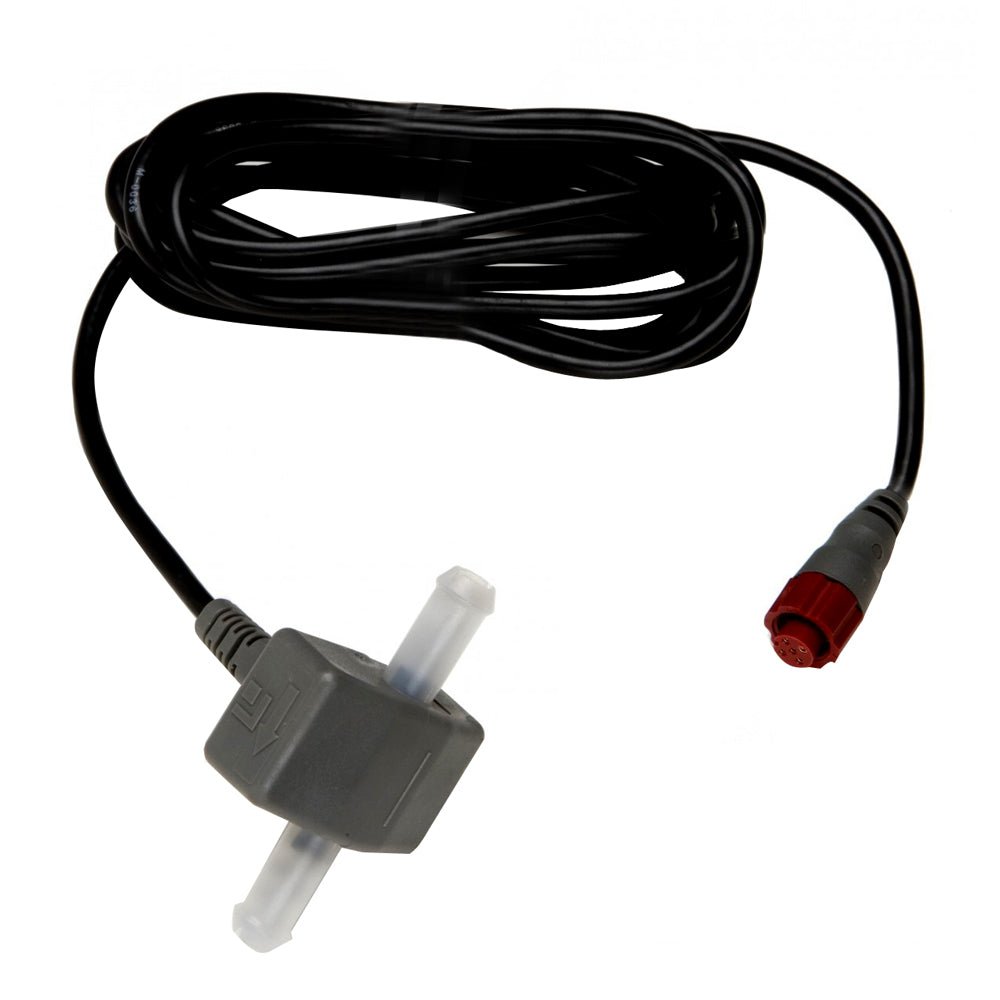

Lowrance Fuel Flow Sensor w/10′ Cable & T-Connector [000-11517-001]

Fuel Flow Sensor with 10′ cable & T-connectorFuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported. Outputs:
Fuel Flow
Tank Fuel Used
Trip Fuel Used
Seasonal Fuel Used
Cable Length: 10’Fuel Line Diameter: 3/8″ (9.5mm) Inside DiameterFlow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these valuesAdded Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hrInstallation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y’s or T’s in the linePackage: The Fuel Flow Sensor, N2K T and 2 (two) 1″ hose clampsFuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systemsHole required to route through a bulkhead: 22mm (7/8″)Multiple Fule Flow sensors possible: Yes Specifications:
Type: Misc
Box Dimensions: 2″H x 4″W x 10″L WT: 0.6 lbs
UPC: 9420024129852
