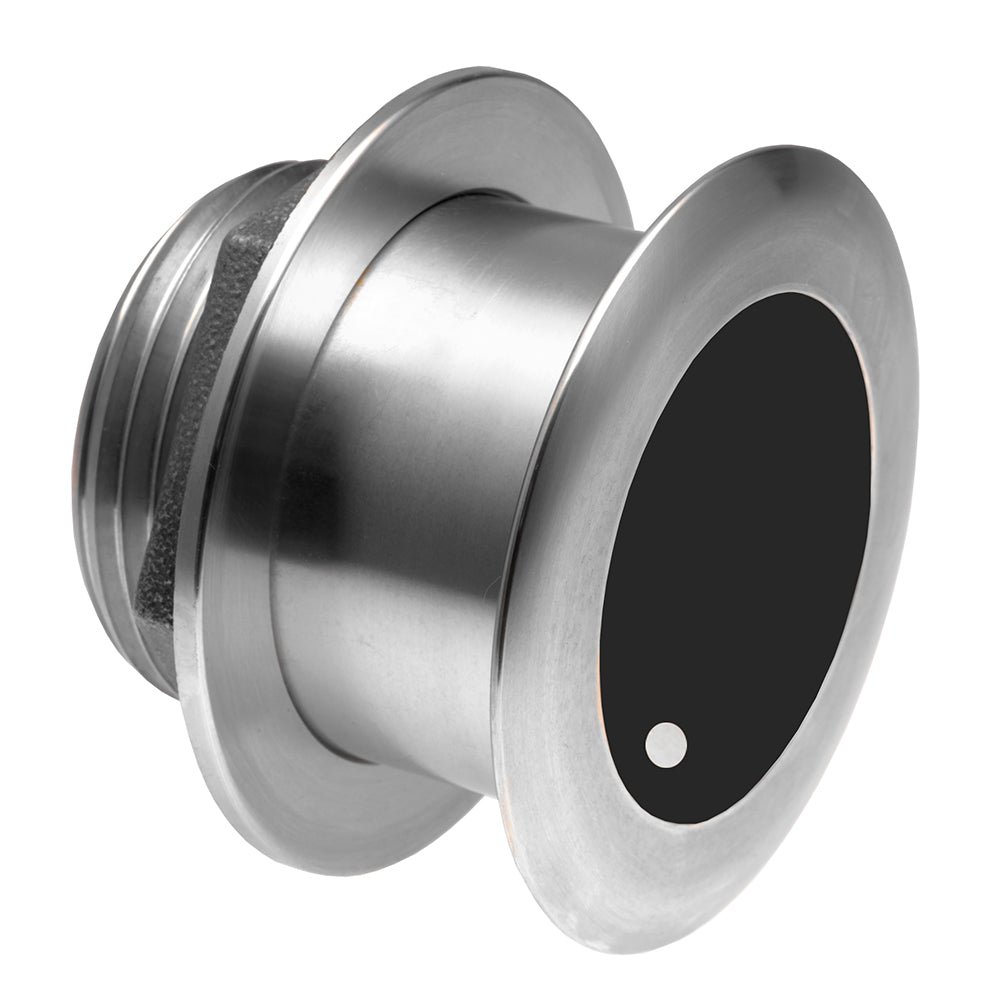

Navico xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer – 20 Element – 9-Pin [000-13779-001]

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer – 20° Element – 9-PinFeatures:
Black 9-Pin Connector
Cable Length – 10M (33.0′)
SS175M – 1-Internal Broadband Ceramic Assembly
Depth & fast-response water-temperature sensor
Stainless Steel transducer housing
Hull Type: Steel or aluminum
Boat Size: Up to 11M (36’)
Useable shaft length 71mm (2.80”)
Medium-Frequency (M)
Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth
50 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency
Specifications:
Mounting Style: Thru-Hull
Cable Length (Feet): 10m
Temperature: Yes
Box Dimensions: 8″H x 10″W x 11″L WT: 10.8 lbs
UPC: 9420024161906
