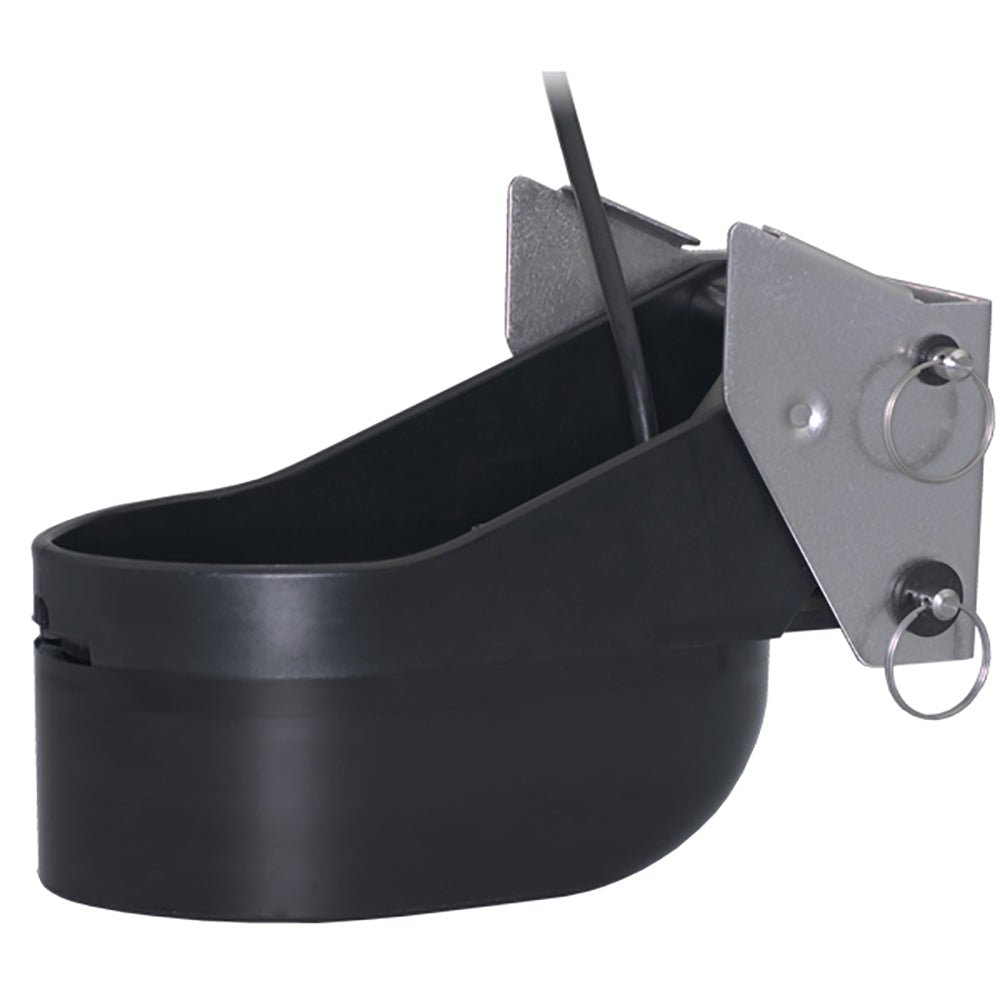

Navico xSonic TM185HW Wide-Beam Chirp Tramsom Mount Transducer – 9-Pin [000-13997-001]

xSonic TM185HW Wide-Beam Chirp Tramsom Mount Transducer – 9-PinGet more coverage under the boat with Airmar’s new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducersA unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar’s new wide beam format also creates crisper and larger return images on the display. We’ve got you covered.Features:
Depth & temperature
150-250 kHz H frequency
Urethane Housing
1 kW
Wide 25° beam
Weight: 0.45 kg (1.1 lb)
Hull Deadrise: 2° to 20°
Acoustic Window: Urethane
Specifications:
Chirp: High Wide
Mounting Style: Transom
Box Dimensions: 8″H x 11″W x 12″L WT: 8.15 lbs
UPC: 9420024165911
Quick Guide (pdf)Brochure (pdf)
