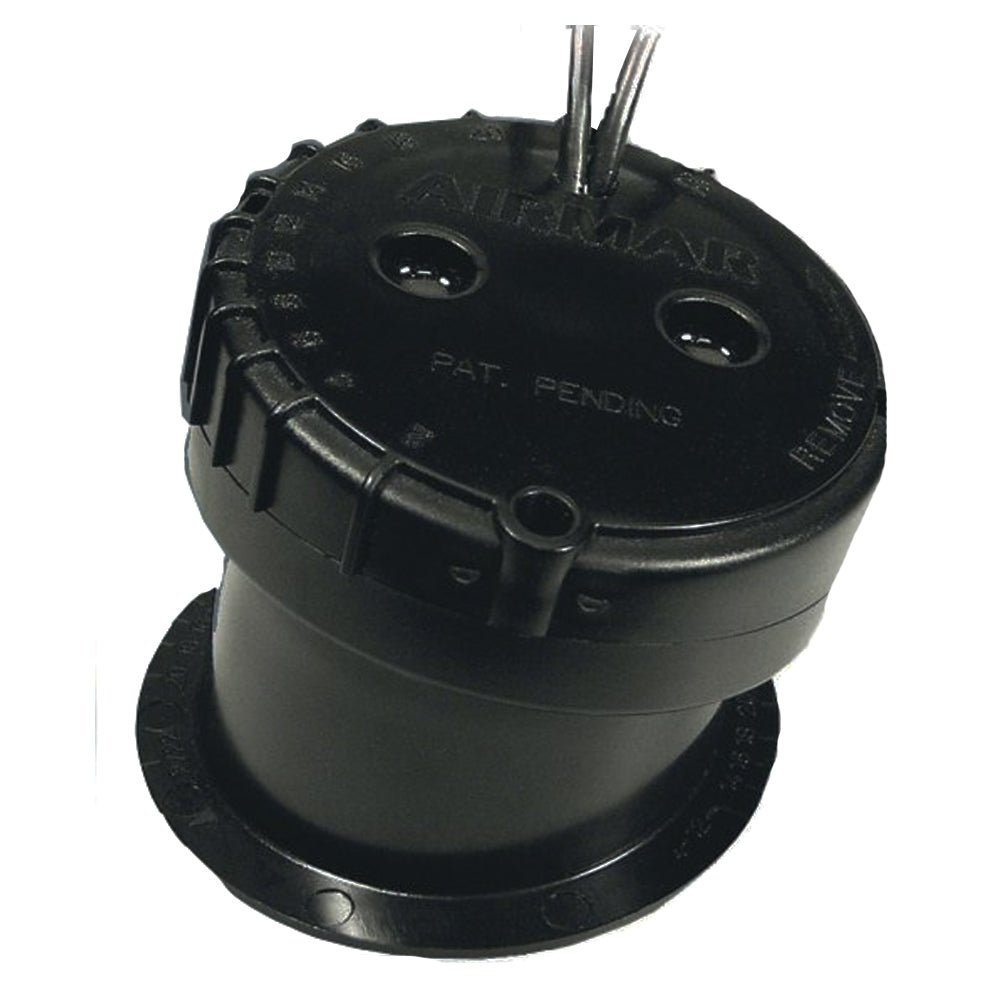

Raymarine P79 Adjustable In-Hull Transducer [E66008]

Adjustable In-Hull Transducer 600 Watt adjustable angled in hull transducer. (P79)Compatible with the following Echo Sounders:SL Series: SL755RC, SL760RC , SL1250, and SL1250RChsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RChsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRCCompatible hull material: fiberglassMax Power: 600 WFrequency: 200/50 kHzBeam Angles: 200 kHz 11 50 kHz 45Features:
Depth only.
Can be used in conjunction with the E66019 ST69 speed and temperature sensor
Easily adjusts to any deadrise angle up to 22
Transmits sound waves directly at the bottom so strong echoes are reflected back to the transducer
Can be removed in seconds for servicing or storage
Only the base piece is bonded to the hull. There is no adhesive layer under the transducer face to absorb sound energy
Simplifies in-hull installation
30ft (10m) Cable Specifications:
Temperature: No
Speed Included: No
Mounting Style: In-Hull
Imagining: Standard
Chirp: No
Cable Length (Feet): 30′
Box Dimensions: 4″H x 8″W x 10″L WT: 2.8 lbs
UPC: 023193660080
Owner’s Manual (pdf)Brochure (pdf)
