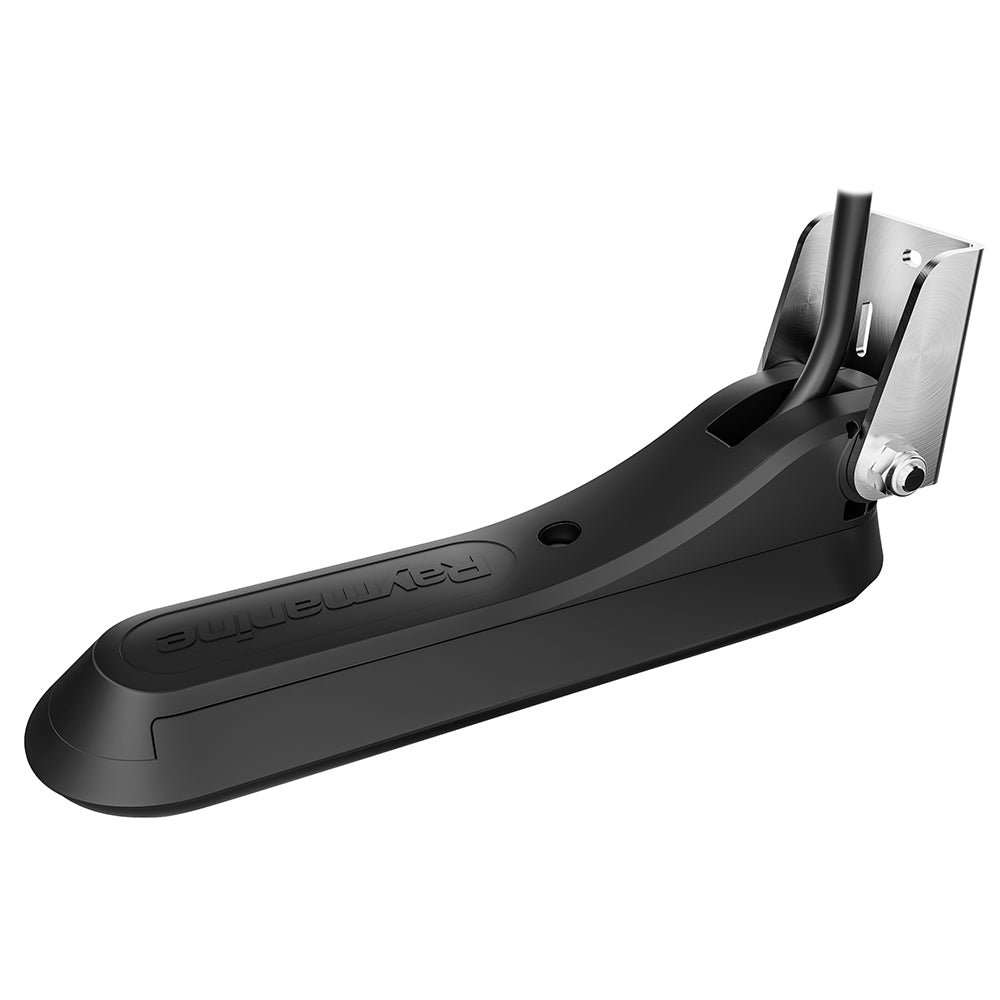

Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer [A80464]

RealVision 3D™ All-In-One Transom Mount TransducerRaymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)What’s in the Box?
RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
Transom bracket
Mounting hardware
Installation instructions
Specifications:
Temperature: Yes
Speed Included: No
Mounting Style: Transom
Imaging: Standard/Down/Side
Chirp: High
Cable Length (Feet): 26′
Pins: 25
Box Dimensions: 5″H x 11″W x 14″L WT: 5.3 lbs
UPC: 723193816523
