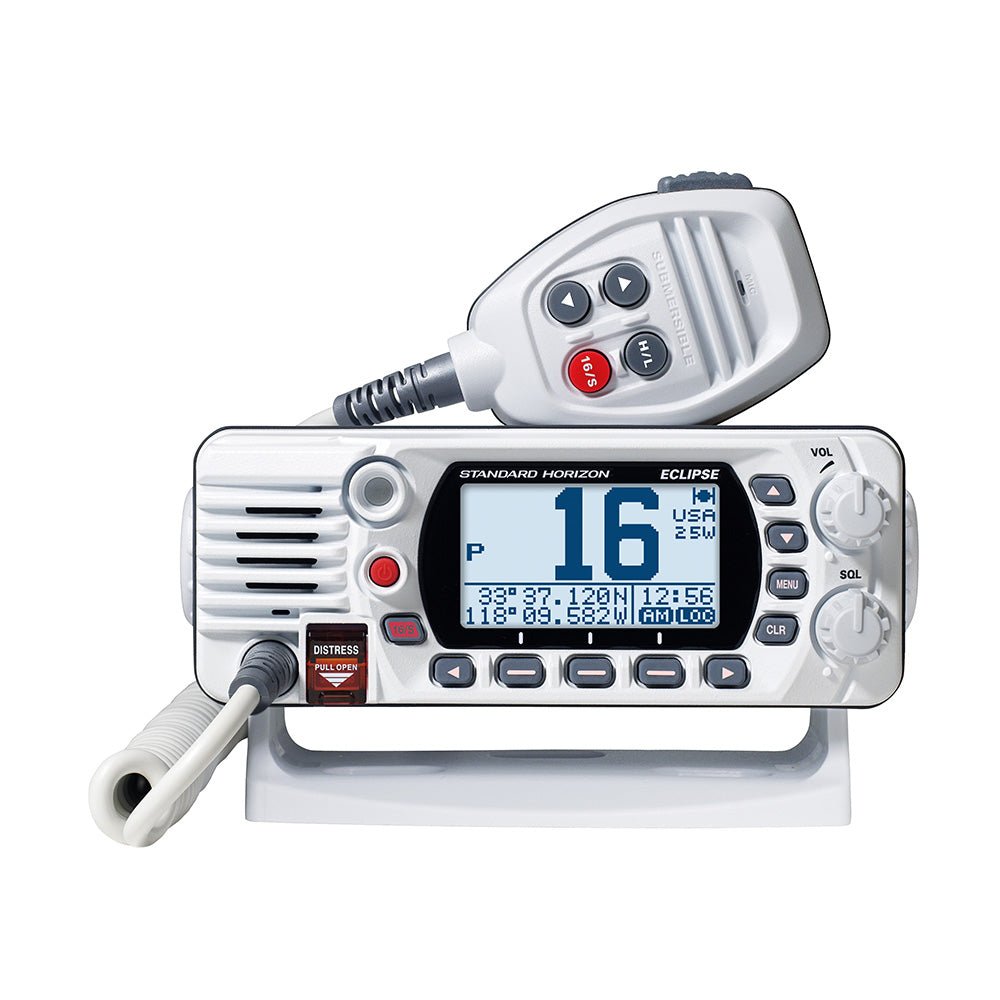

Standard Horizon GX1410GW Eclipse Series 25W Fixed Mount VHF/GPS – White [GX1410GW]

GX1410GB Eclipse Series 25W Fixed Mount VHF/GPS – WhiteITU-R M493-16 Class D Digital Selective CallingThe GX1410 Eclipse Series is an ITU-R M493-16 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.When activated, the DSC DISTRESS function transmits a digital MAYDAY, including vessel identification, Latitude / Longitude, and time, to facilitate prompt response. Additional calls that can be made are Individual, Urgent, Safety, Position Report, and Send.High-Resolution Dot Matrix DisplayThe high-resolution dot matrix display makes navigating the radio’s many features smooth and easy. The adjustable ultra-bright backlight makes daytime and nighttime viewing a breeze.E2O Easy-to-Operate Menu SystemKeeping the everyday boat operator in mind, the Easy to Operate menu system is more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming have never been easier.Easy DSC Installation!The GX1410G makes DSC easy. With an internal 66 Channel GPS built into the front panel, there is no need to hassle wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling and position sharing can both be performed with just a few simple steps.Features:
Built-in 66 Channel WAAS GPS receiver
Affordable Ultra Compact Class D Fixed Mount VHF Radio
Meets ITU-R M493-16 Class D DSC (Digital Selective Calling)
Replaces older Eclipse+ and Eclipse DSC Models
Radio controls on the Microphone
E2O Easy to Operate Icon/Menu System
Oversized Full dot matrix display (31 mm x 55 mm)
Built-in Separate Receiver for CH70 (Receiving DSC Calls)
DSC test call and Auto DSC channel change selection
GPS position and Time Shown on a Full-dot Matrix Display
NMEA In and Output Connections to a Compatible GPS Chart Plotter
Programmable soft keys
Automatically poll the GPS position of up to 6 ships using DSC
Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
All USA/International and Canadian Marine Channels
Preset key used to recall up to 10 favorite channels
NOAA weather channel selection with Weather Alert
Programmable Scan, Priority Scan, and Dual Watch
Specifications:
AIS: No
Built-In GPS: Yes
Color: White
Hailer: No
Intercom Capability: No
NMEA 2000: No
Remote Mic Capable: No
Scrambler Capable: No
Box Dimensions: 4″H x 7″W x 10″L WT: 3.05 lbs
UPC: 788026183531
