Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

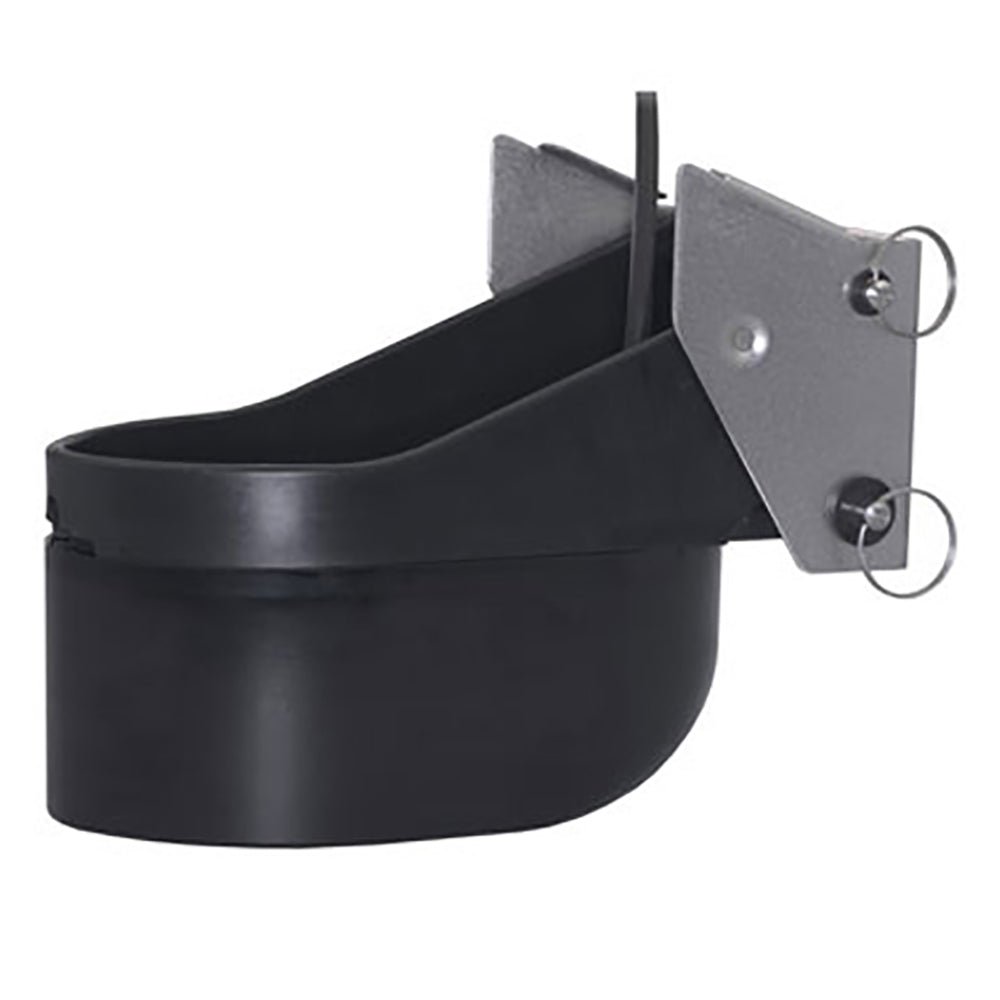

xSonic TM275LH-W TM CHIRP Transducer Wide AngleThe TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25x beam width for the best resolution and coverage in the upper water column and in shallower depths.Features:
42-65 kHz Low CHIRP with 25-16x beam width
150-250 kHz High CHIRP with wide 25° beam for excellent fish targets
Up to 1200 m (4000 ft) range with Low CHIRP
8 internal broadband ceramics
Transom-mounted with urethane housing and stainless steel mounting bracket (can retrofit to existing TM258 & TM260 brackets)
Suitable for fiberglass, wood and metal hulls
Ideal for sportfishing and commercial vessels 8 m (25 ft) and up
Recommended for use with the BSM-3 broadband sounder module
Specifications:
Mounting Style: Transom
Box Dimensions: 8″H x 11″W x 12″L WT: 11.4 lbs
UPC: 9420024161814
